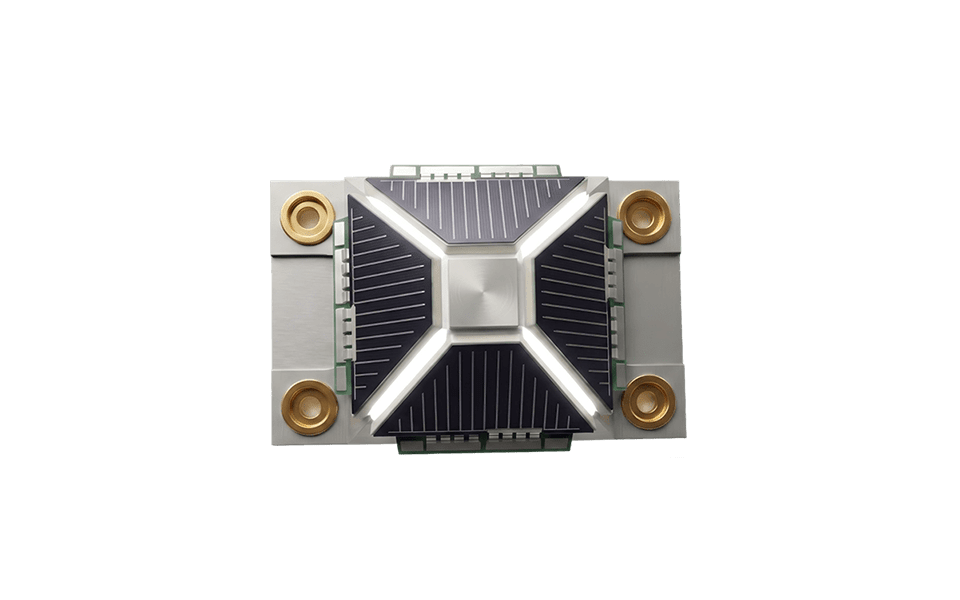

Pyramidal Sun Sensor
Others
- Solar Cell: InGaP/GaAs/Ge
- Substrate: 2A12 Aluminum alloy
- Temperature : -100℃~120℃
- Size：7.57mm×27.89mm
(Single-quadrant Sun Sensor Cell)
- Mass: 25g
-

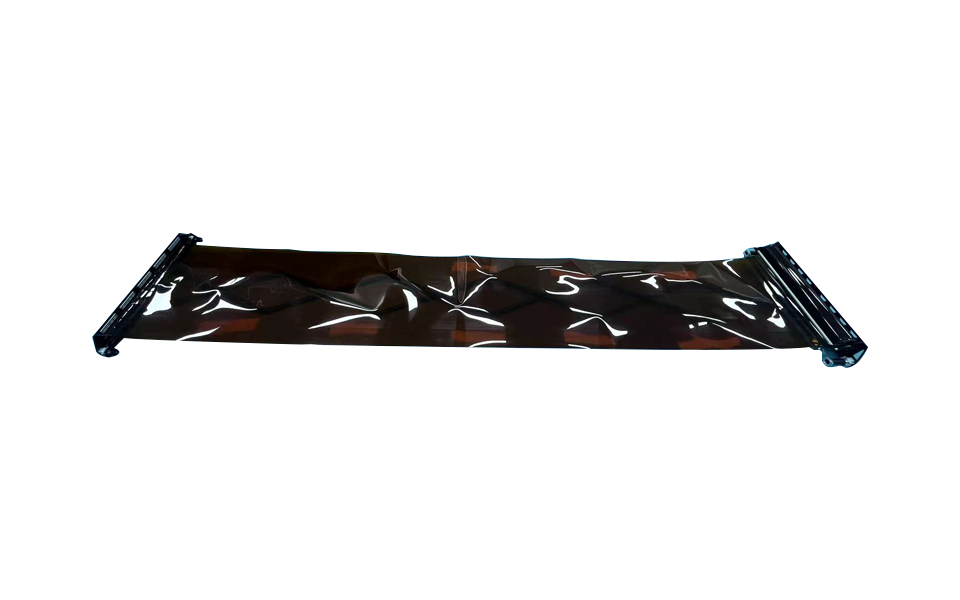

Flexible Roll-Up Mechanism
Others
- Perovskite solar cells integrate with polyimide film
- Bend radius：100mm
- Temperature：-100℃~100℃
-

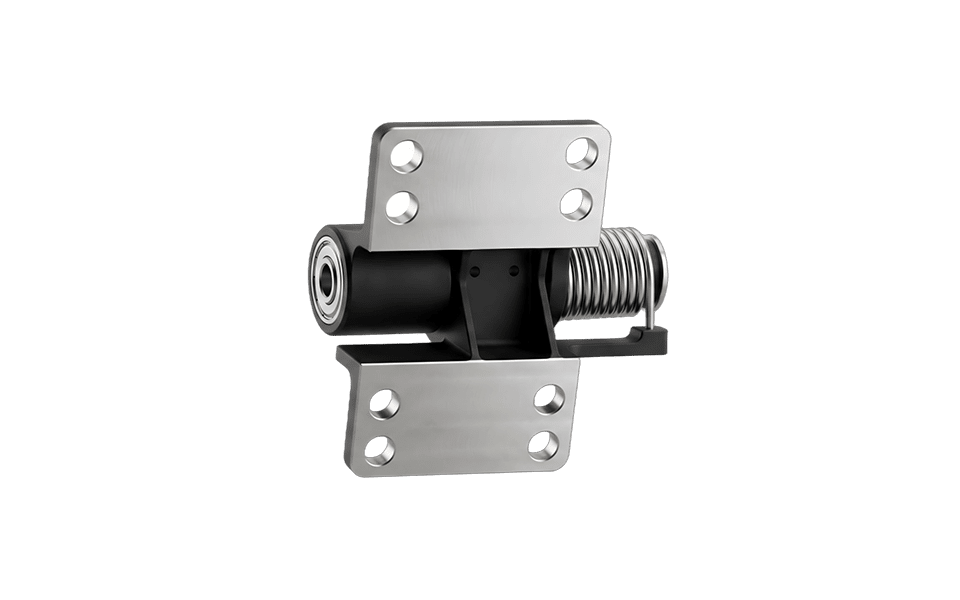

90° Scroll Spring Hinge
Others
- Mass：＜100g
- Size：65.0mm×61.2mm×46.0mm
- Mechanical interface：4×M4 screws
- Folding angle：0°
- Unfolding angle：90°
- Folding state torque：518.4 N mm
- Unfolding state torque：414.7 N mm
-

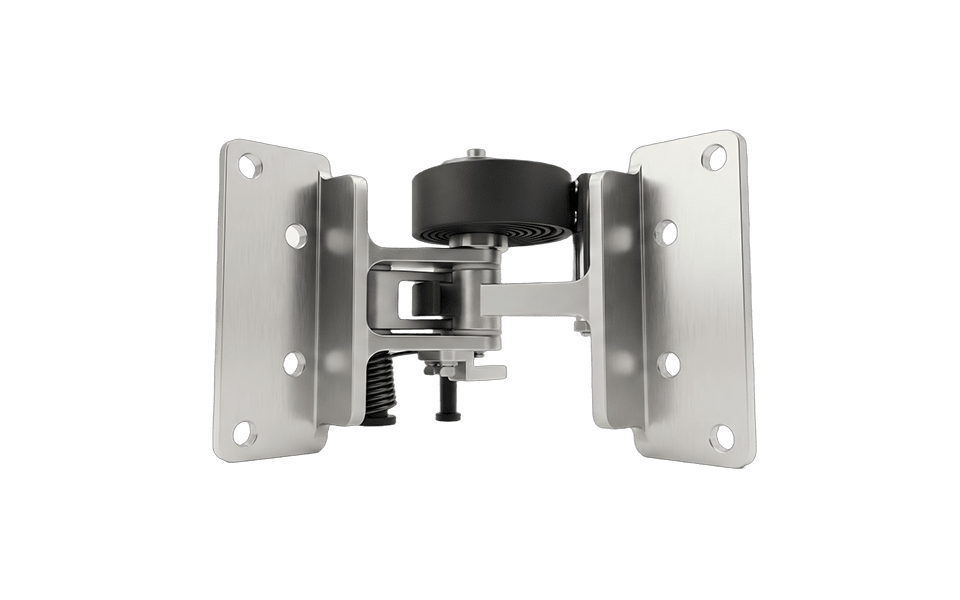

180° Scroll Spring Hinge
Others
- Mass：＜100g
- Size：63.7mm×61.2mm×46.0mm
- Mechanical interface：4×M4 screws
- Folding angle：0°
- Unfolding angle：180°
- Folding state torque：414.7 N mm
- Unfolding state torque：207.4 N mm
-

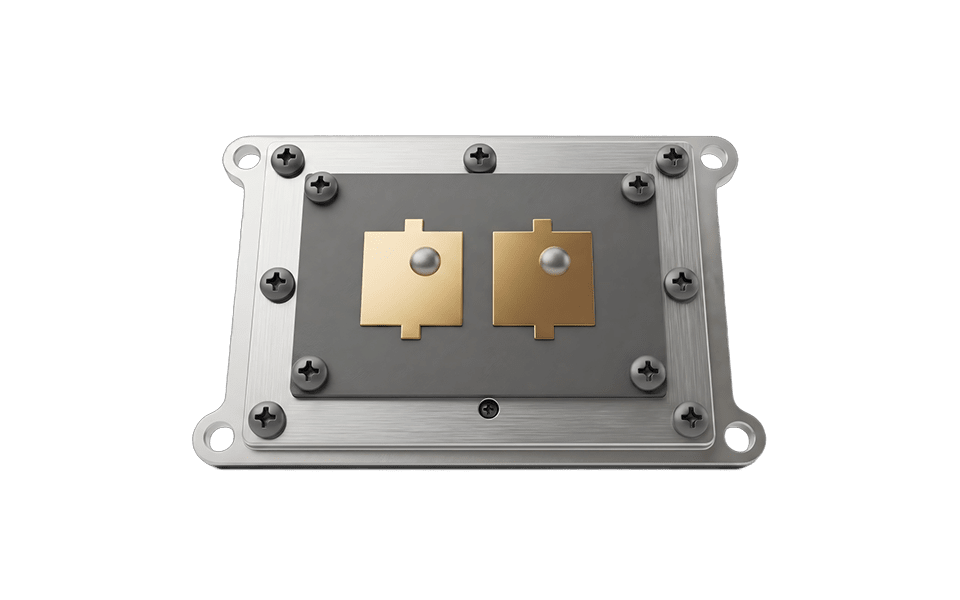

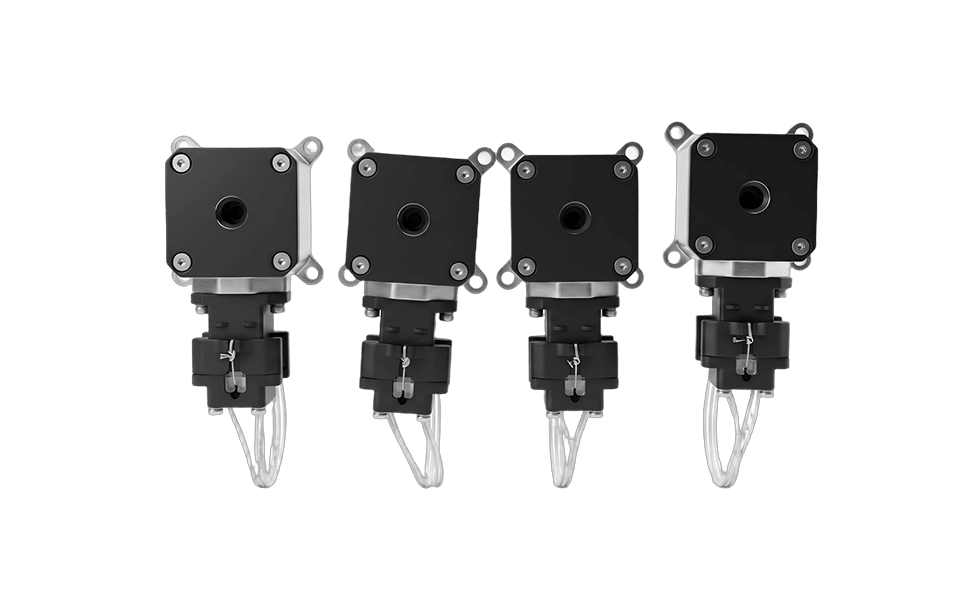

Separation Nut
Others
- Driving method：SMA & Thermal knife
- Solar panel & Antenna & Active component restraint
- Low-impact, low-current, pollution-free and reusable
-

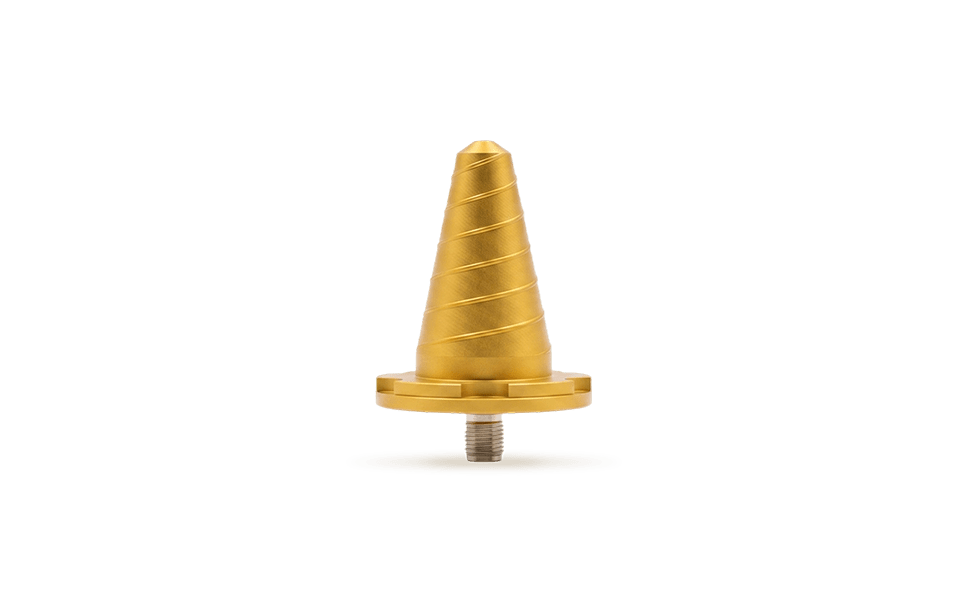

Transponder Antenna
Others
- Frequency Range：7200~8400MHz
- Antenna Gain at ±70°
- Transmit Gain > 1.0 dB
- Receive Gain ＞ -1dBi
- VSWR：＜2dB
- Polarization Type：LHCP & RHCP
- Mass：<50g
-

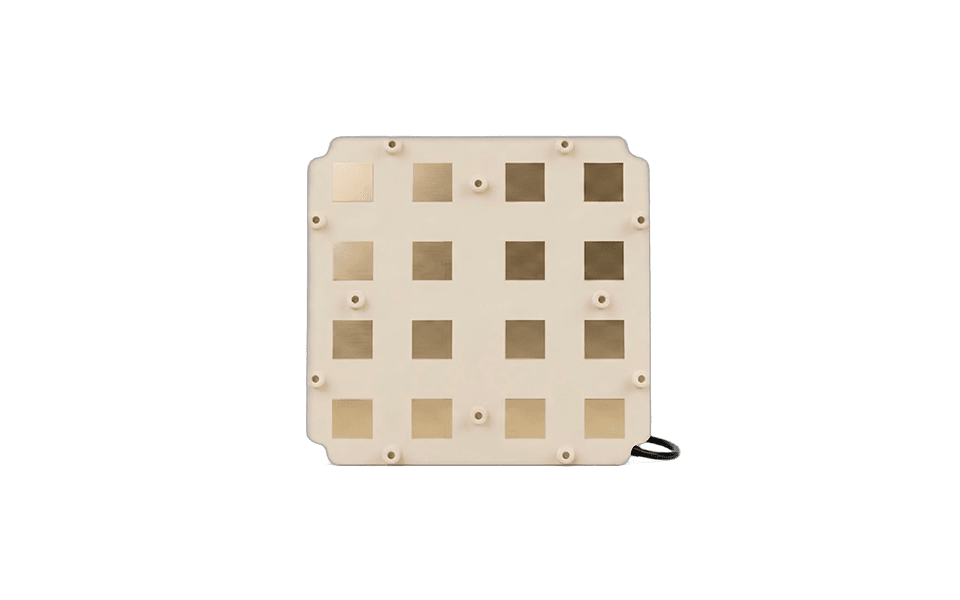

Flat Panel Antenna
Others
- Frequency Range ：8025-8400 MHz
- Axial Gain： 15dBi
- VSWR ：＜2dB
- Polarization Type ：Dual Linear Polarization
- Mass ：＜70g
-
Microstrip Patch Antenna
Others
- Frequency Range： 8025-8030/8050-8055MHz
- Antenna Gain at ±65° ：>1.0 dBi
- VSWR ：＜2dB
- Polarization Type ：LHCP & RHCP
- Mass ：<75g
